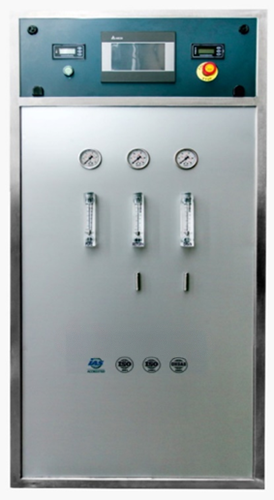

GLT Double Pass Reverse Osmosis System

GLT Double Pass Water Treatment System – Maximum Purity for Hemodialysis

Ensure the highest water quality for your dialysis center with our advanced Double Pass Reverse Osmosis System – designed specifically for hemodialysis applications. This system delivers exceptional filtration performance, reducing bacterial contamination and endotoxins to meet the most stringent international standards.

✅ Ultra-pure water for safe dialysis
✅ Double-stage filtration for added protection
✅ Compact, durable, and easy to maintain
✅ Compliant with AAMI and ISO standards
✅ Real-time monitoring and alarm features

Trusted by hospitals and dialysis centers worldwide, our system guarantees reliable, continuous water treatment – a critical component for patient safety and machine longevity.

Contact us today for specifications, pricing, and installation support.

Product features

  • Color touch screen LCD panel ofunctions & key parameters.
  • Modular design for easy service procedures including.
  • Immediate heat or chemical mode programable.
  • Temperature compensation feature automatically adjusts flow.
  • Improved membrane access allows removal without machine disassembly.
  • Environmentally & economically friendly design requires
  • Improves membrane life with a low PSI shutdown.
  • Certified to ISO1 1395, Optional Items.
  • Less power to operate.

Product Table

GLT RO SYSTEM HD 1-100 PLUS Model Specifications

Membranes

TFC Heat Disinfectable

Water Conversion

50 – 75%

Salts Rejection

> 96%

Water Feed

pH Tolerance

2 – 11

Total Dissolved Solids

< 1000 ppm

Connections

Chlorine

< 0.1 ppm

Feed Water

1.25” FNPT

Hardness

< 4 ppm at CaCO3

Overflow Tank Drain

1.5” FNPT

Fouling Index (SDI)

< 5

Concentrate (reject)

1” FNPT

Pressure (PSI)

20 - 90

Permeate (product)

1” FNPT

Temperature

41 - 95°F

Loop Return

1” FNPT

SINGLE PASS

DOUBLE PASS

Model

HD 1 PLUS

HD 5 PLUS

HD 10 PLUS

HD 20 PLUS

HD 40 PLUS

Gallons/Day* (up to)

6,480

12,960

17,280

7,920

14,400

Gallons/Minute* (up to)

4.5

9

12

5.5

10

Number of Membranes

1

2

3

3

5

Minimum Feed Flow (GPM)

21

26

29

29

30

Power

208/230V, 60 Hz, 3 phase with dedicated neutral and ground

Max. Current Draw (Amps)

35

44

44

44

59

Shipping Weight Lbs.

1,175

1,500

1,550

1,820

2,470

Operation Weight Lbs.

950

1,310

1,375

1,660

2,285

Dimensions In. (WxDxH)

640 x 750 x 1650

800 x 750 x 1650

* Permeate flow rate at 25°C. Variations in feed water temperature can affect output by up to ±3% per degree Fahrenheit. Based on 1,000 microSiemens water or less. This sheet is not to be used for sizing purposes. Contact an GLT representative and provide a loop design to properly size the system.
