GLT Model AV Bloodline

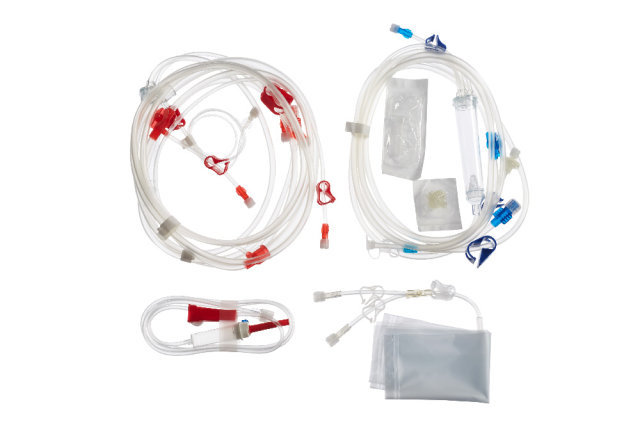

GLT Model AV Bloodline Tubing Set

GLT Model AV Bloodline Sets are engineered to maximize patient safety and clinical operational efficiency in high-volume Dialysis Centers.

Produced under ISO 13485 and CE (MDD 93/42/EEC) quality standards, these sets undergo 100% leak testing to guarantee zero contamination. Advanced material science and an ultra-soft tubing structure ensure a stable blood flow throughout the line while providing an effortless setup for nursing staff. With configurations suitable for both standard hemodialysis and HDF (hemodiafiltration), they meet all clinical requirements.

Product features Documents

Product features

Feature	Detail / Technical Specification
Main Material	Medical-grade PVC, High biocompatibility
Special Material Option	DEHP-Free (Phthalate-free) available upon request
Standard Model Series	HDI, HDJ, HDK, HDL, HDM, HDN, HDB
DEHP-Free Model Series	HDTA, HDTF, HDTZ
Special Design Models	HDIT-02 (Exclusive for Fresenius 5008, 430 mm pump tube)
Chamber Volumes	20 mL, 25 mL, 30 mL, 50 mL, 60 mL (With/without filter options)
Machine Compatibility	Standard systems including Fresenius, Gambro, Nipro, B.Braun, Baxter, Nikkiso
Connection Type	Leak-proof Luer-Lock connectors
Line Control	Arterial (Red) and Venous (Blue) color-coded ergonomic clamps
Additional Equipment	Transducer protector, Injection port, HDF accessory tubing
Drain Bag	1.5L - 2.0L capacity (Included in standard pack)
Safety & Usage	Single-use (Disposable), Sterile, Pyrogen-free, Non-toxic
Sterilization Method	ETO (Ethylene Oxide) or Gamma Irradiation
Quality Standards	ISO 13485, CE Marked (MDD 93/42/EEC)
Shelf Life	3 Years
